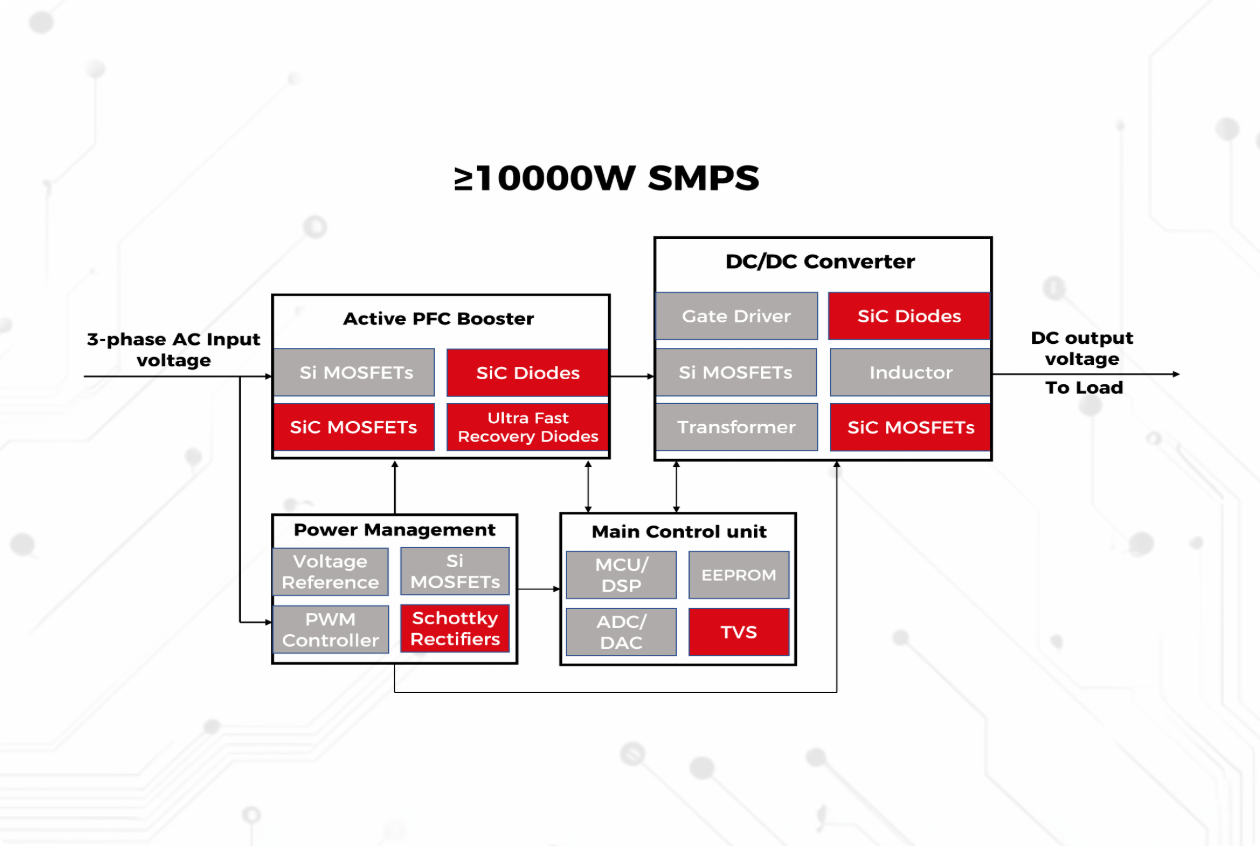

≥10000W SMPS
Overview
Switch-mode power supplies (SMPS) exceeding 10kW in power rating serve as critical energy conversion units in industrial equipment, data centers, renewable energy systems, and telecommunications base stations. Their core design must prioritize high efficiency, high power density, and electromagnetic compatibility (EMC). This analysis systematically examines the working principles, topological architectures, and market trends.
Working Principles
PFC (Power Factor Correction) Stage
High-power SMPS typically employ active PFC at the front end, utilizing a Boost converter to transform input AC voltage into high-voltage DC (typically 380-400V). Key technologies include:
- Critical Conduction Mode (CrM) or Continuous Conduction Mode (CCM): CCM is preferred for high-power applications. Fixed-frequency control minimizes switching losses, while average current control strategies suppress harmonic distortion (THD).
- Digital Control Algorithms: DSP-based predictive control dynamically adjusts duty cycles, elevating the power factor (PF) beyond 0.99 to comply with standards like IEC 61000-3-2.
DC/DC Conversion Stage
The subsequent isolated DC/DC stage provides precise voltage regulation. Common topologies include:
- LLC Resonant Converter: Utilizes a resonant tank to achieve soft switching (Zero-Voltage Switching - ZVS / Zero-Current Switching - ZCS), significantly reducing switching losses. Efficiencies exceeding 96% enable high-frequency operation.
- Phase-Shifted Full-Bridge (PSFB): Employs phase-shift control for output voltage regulation in high-power scenarios. Efficiency is further enhanced through synchronous rectification.
Topological Architectures
Two-Stage Architecture (PFC + DC/DC)
- Advantages: Modular design simplifies maintenance; PFC and DC/DC stages can be optimized independently. Examples include employing a three-phase interleaved Boost PFC to minimize input current ripple and paralleling multiple LLC converters for power scaling.
- Challenges: Multi-stage conversion introduces efficiency losses. Magnetic integration techniques are often required to reduce volume.
Single-Stage Integrated Architectures
- Examples (e.g., Totem-Pole PFC + LLC): Reduces component count but increases control complexity, demanding careful solutions for high-frequency isolation and EMI mitigation.
Market Outlook and Development Trends
Key Drivers
- Renewable Energy Demand: Surging requirements for high-efficiency power conversion in photovoltaic inverters and energy storage systems (ESS). The global market is projected to exceed $12 billion by 2025.
- Data Center Evolution: Adoption of 48V bus architectures fuels R&D in high-density power modules. Gallium Nitride (GaN) devices enable switching frequencies reaching MHz levels.
Technology Trends
- Wide-Bandgap (WBG) Semiconductors: Silicon Carbide (SiC) and GaN devices offer high-temperature operation and low conduction/switching losses, enabling over 30% reduction in power supply volume.
- Digitization and Intelligence: AI algorithms facilitate fault prediction; digital control loops enable adaptive parameter tuning for optimized performance under varying conditions.
Challenges
- Thermal Management: Current sharing in multi-chip parallel configurations necessitates optimization through advanced 3D packaging.
- Evolving Standards: Continuously tightening global efficiency regulations (e.g., DoE Level VI, EU CoC Tier 2) drive topological innovation.
Conclusion
High-power (>10kW) switch-mode power supplies are evolving towards higher frequencies, greater integration, and enhanced intelligence. Performance improvements hinge on synergistic topological optimization and the adoption of novel semiconductor materials. Future market growth will be heavily driven by renewable energy and data center applications, contingent upon overcoming challenges in thermal design and cost control.
