Technical Analysis and Market Outlook for 11kW EV On-Board Chargers
Working Principle

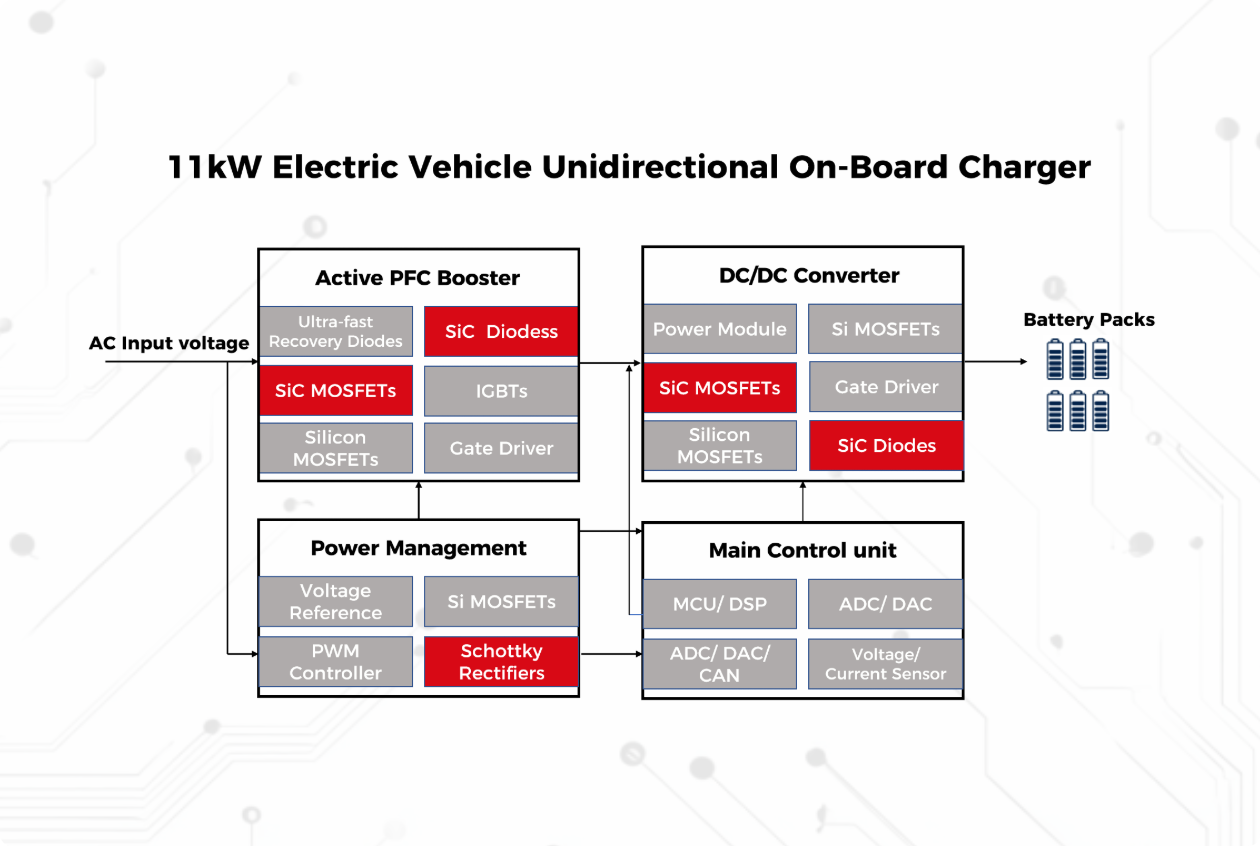

The 11kW On-Board Charger (OBC) achieves efficient power conversion using three-phase AC input (380V/50Hz). Its core operational sequence is:
1. EMI Filtering:Suppresses high-frequency noise from the grid side.
2. Three-Phase PFC Rectification:Utilizes topologies like VIENNA rectifier to achieve Power Factor Correction (PF > 0.99) and Total Harmonic Distortion (THD < 5%).
3. Isolated DC-DC Conversion:Employs an LLC resonant converter to perform soft-switching conversion from an intermediate ~400V DC link to the high-voltage battery pack (300-800V).
4. BMS Communication:Dynamically adjusts the charging profile (CC/CV modes) through real-time communication with the Battery Management System.
Analysis of Typical Topology Architectures
Three-Phase VIENNA + LLC Combination Topology
- Advantages:Diode-clamped structure reduces switching stress; inherent bridgeless design minimizes conduction losses; LLC enables Zero-Voltage Switching (ZVS)/Zero-Current Switching (ZCS), boosting peak efficiency (>96%).
- Disadvantages:VIENNA requires complex midpoint potential balancing control; LLC has limited voltage regulation range capability.
Silicon Carbide (SiC) Device Application
- Advantages:Reduces switching losses by ~60%; enables high-frequency operation (>120kHz); higher junction temperature tolerance (>175°C).
- Challenges:Complex gate drive design requirements; cost premium of 3-5x compared to silicon-based solutions.
Market Prospects and Development Trends
Technology Directions:
- Bidirectional charging/discharging (V2X) becoming a standard feature.
- Third-generation semiconductor (e.g., SiC/GaN) adoption rate expected to exceed 40% by 2025.
- Increasing prevalence of integrated designs (combining OBC, DC/DC converter, and Power Distribution Unit - PDU).
Market Demand:
- China: Projected annual installations of 11kW OBCs to reach 2.6 million units by 2025.
- Europe: Significant demand growth driven by Type 2 AC charging standards.
- Adoption of 800V high-voltage platforms accelerating the replacement of silicon solutions with SiC-based architectures.
Summary:This report systematically details the key technological pathways for 11kW OBCs. While silicon-based VIENNA+LLC remains the dominant solution currently, SiC-based alternatives are rapidly gaining market share as costs decline. Over the next three years, integrated designs and bidirectional charging capabilities are poised to become industry standard features.
