Comprehensive Technical and Market Analysis Report on High-Power Fan Drives (>10kW)
Executive Summary
High-power fan drives (>10kW), serving as critical propulsion units in industrial ventilation, data center cooling, and renewable energy thermal management systems, demonstrate significant influence on energy efficiency and operational reliability.
In-Depth Operational Principles
Energy Conversion Mechanism

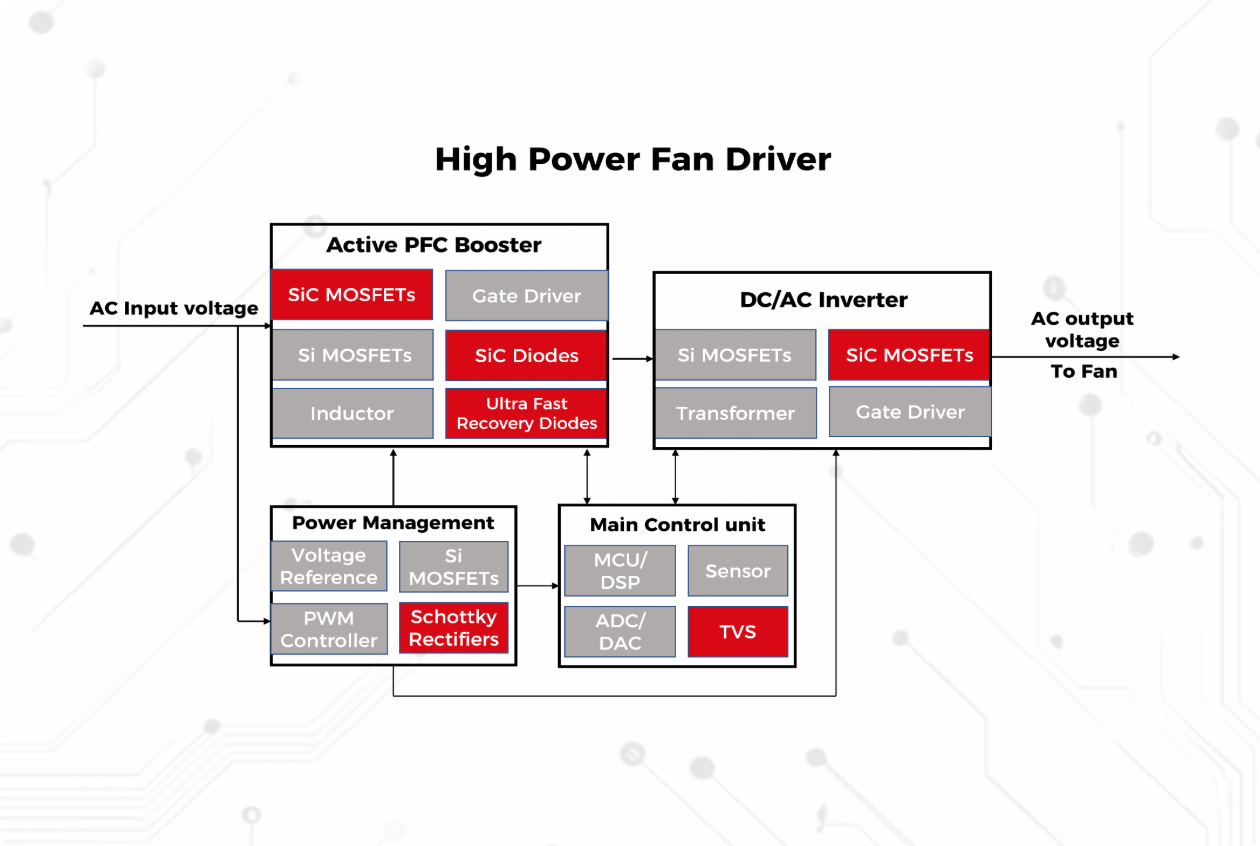

The core functionality involves three-stage electromechanical energy conversion:
- Rectification Stage: Three-phase full-bridge rectifiers convert AC input to DC bus voltage, incorporating PFC (Power Factor Correction) to maintain THD<5% per IEC 61000-3-2 standards.
- Inversion Stage: Variable-frequency three-phase AC output generated via Space Vector PWM (SVPWM) with key parameters including switching frequency (typically 8-20kHz) and dead-time (100-500ns).
- Motor Control Loop: Field-Oriented Control (FOC) utilizing Clarke-Park transformations achieves torque/excitation current decoupling, enabling rotational speed accuracy within ±0.2%.
Dynamic Response Characteristics
- Current feedforward compensation algorithms reduce load-transient response time to <10ms.
- Dual-layer thermal protection (NTC sensors + IGBT junction temperature modeling) activates derating at 150℃ and emergency shutdown at 170℃.
Efficiency Optimization Strategies
- Silicon IGBT modules (e.g., Infineon FF450R12KE3) exhibit 60% conduction loss dominance; three-level topologies reduce switching losses by 30%.
- Magnetic integration combining filter inductors and common-mode chokes decreases copper losses by >15%.
Comparative Analysis of Topological Architectures
Two-Level Voltage Source Inverter (2L-VSI)
- Advantages: Simplified structure (6 switches), low BOM cost (~$0.8/W).
- Limitations: High dv/dt stress (>5kV/μs) necessitates RC snubbers, reducing system efficiency to 94-96%.
- Applications: Harsh environments (e.g., mine ventilation).
Three-Level T-Type Topology
- Innovation: Neutral-point-clamped diodes achieve output THD<3%.
- Critical Technology: Midpoint potential balancing requires 3D-SVPWM, increasing algorithmic complexity by 40%.
- Cost-Efficiency: 12% higher component cost vs. 2L-VSI, yet system efficiency reaches 97-98%.
Matrix Converter Architecture
- Breakthrough: Elimination of DC-link capacitors extends lifespan to 100k hours (vs. 50-60k hours conventional).
- Challenge: Four-step commutation strategy demands ±50ns switching precision.
- Commercialization: Yaskawa GA700 series deployed in HVAC applications.
Hybrid SiC Solutions
- SiC MOSFETs (e.g., SMC S3M0040120K) in rectifier stage enable 100kHz switching.
- Silicon IGBTs retained for inversion, balancing 18% cost increase against 25% loss reduction.
Market Outlook and Emerging Trends
Market Size Projections
Per MarketsandMarkets analysis, the global >10kW fan drive market will reach $4.7B by 2025 (CAGR 8.3% 2021-2025):
- Asia-Pacific dominates 42% share (driven by China’s "East-West Computing Resource Transfer" initiative).
- European carbon neutrality mandates require >60% IE4-class equipment penetration.
Technological Evolution Pathways
- Wide Bandgap Adoption: SiC/GaN market share rising from 15% (2025) to 45% (2030).
- Digital Twin Integration: ANSYS Twin Builder enables predictive maintenance, cutting OPEX by 30%.
- Wireless Power Transfer: WPT Consortium developing Qi standards for 10kW rotating equipment.
Regulatory Drivers
- China’s GB 30253-2013 mandates ≥95% system efficiency for >10kW drives.
- EU ERP Lot 11 restricts standby power consumption to <0.5W.
Conclusion
High-power fan drives are transitioning from conventional designs toward intelligent, high-efficiency systems, with three defining characteristics emerging:
- Topological diversification (three-level architectures exceeding 50% market share)
- AI-enhanced control (deep learning for autonomous parameter tuning)
- Modular integration (power density surpassing 5kW/dm³)
The advantages of SMC
SMC, as a globally leading power semiconductor device manufacturer with nearly 30 years of history, can provide customers with the most advanced, efficient, and cost-effective third-generation silicon carbide MOSFETs and silicon carbide JBS diodes. In addition, SMC has unique experience in silicon-based power diode devices, and its best-selling high-power ultra-fast recovery diodes, high current Schottky diodes, and other products are highly praised by customers worldwide. SMC's power semiconductor devices can provide higher efficiency, better reliability, good delivery time, and competitive prices for your products. SMC's professional service team around the world allows you to experience the ultimate customer service experience and safeguard your product design.
