Comprehensive Analysis of LED Driver Power Supplies: Working Principles, Topology Selection by Power Range, and Market Prospects
Working Principle: Constant Current Driving as the Core
LED driver power supplies essentially convert AC/DC input into a stable DC current. Their core function is constant current control, for the following reasons:
Electrical Characteristics of LEDs
- LEDs are current-driven devices; brightness is determined by current magnitude.
- Negative Temperature Coefficient: Temperature ↑ → Forward Voltage (Vf) ↓ → Under constant voltage drive, current ↑ → Risk of thermal runaway.
- Nonlinear V-I Curve: Minor voltage fluctuations cause significant current variations (e.g., ±0.1V Vf change → ±20% If variation).

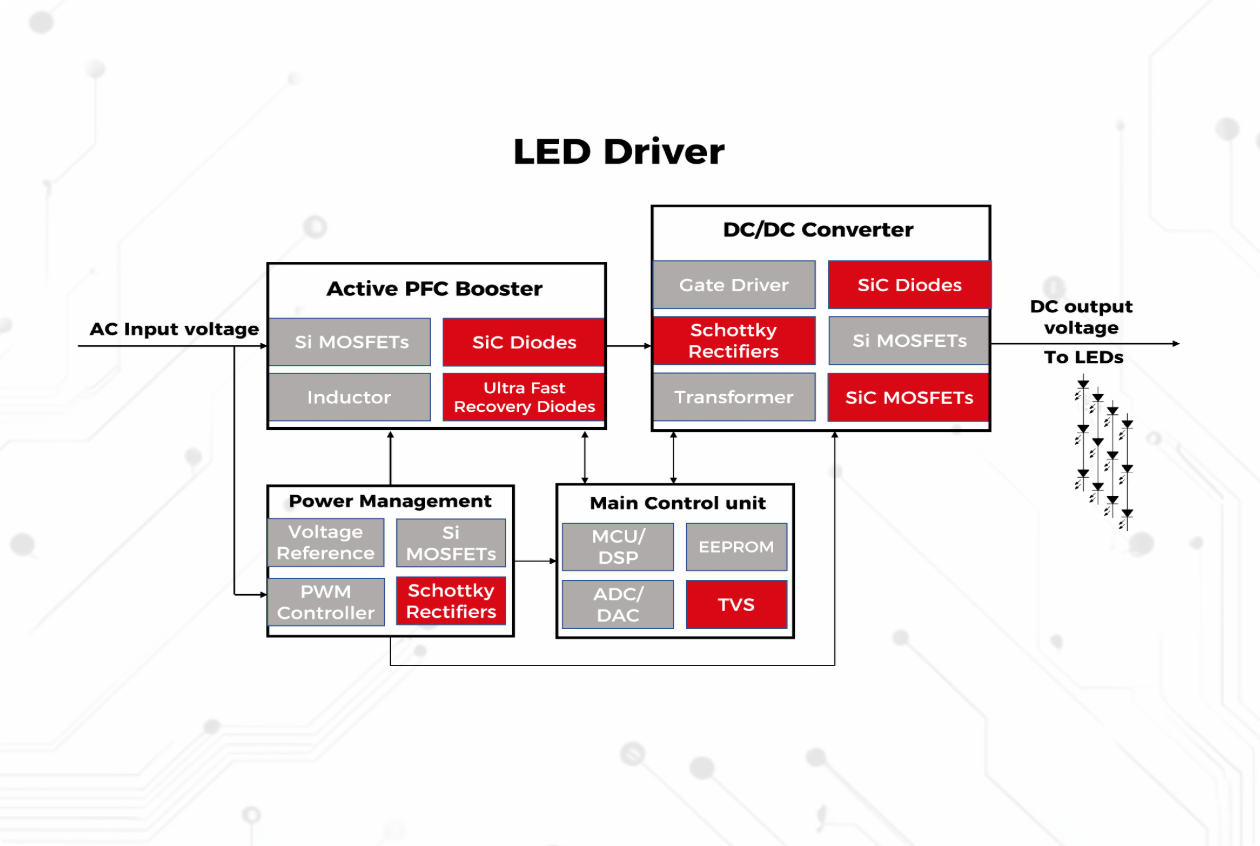

Key Module Analysis
- PFC (Power Factor Correction)
Eliminates current harmonics, improves power factor to >0.9 (mandatory for >25W per regulations). - Constant Current Control Mechanism
Uses current-sensing resistor (Rsense) feedback to dynamically adjust PWM duty cycle/frequency. - Dimming Implementation
Supports PWM/0-10V/DALI signals by reducing output current.
Power Range and Topology Selection
(Sorted by ascending power level)
| Power Range | Recommended Topology | Characteristics | Typical Applications |
| < 5W | Resistive-Capacitive Dropper | Ultra-low cost, non-isolated, efficiency <50% | Night lights, indicators |
| 5-25W | Flyback Converter | Single switching transistor, low cost, supports isolation, efficiency >85% | Bulbs, downlights |
| 25-100W | Flyback (with APFC) LLC Resonant |
Flyback: Cost-effective, integrated PFC LLC: Efficiency >94%, low EMI |
Panel lights, street light modules |
| 100-300W | LLC Resonant Active Clamp Flyback (ACF) |
LLC: Full/half-bridge soft-switching, efficiency >96% ACF: Leakage energy recovery, high-frequency advantages |
High-bay lights, industrial lamps |
| >300W | Full-Bridge LLC Phase-Shifted Full-Bridge |
Interleaved PFC for power sharing, modular design, efficiency >96% | Stadium lighting |
Key Topology Comparison
| Topology | Efficiency | Cost | Design Complexity | Suitable Power |
| Flyback |  |
 |
 |
<150W |
| LLC Resonant |  |
 |
 |
50W-2kW |
| Active Clamp Flyback |  |
 |
 |
100-200W |
| Phase-Shifted Full-Bridge |  |
 |
 |
>500W |
Low-Voltage DC Input Applications: Buck topology is preferred (e.g., 12V/24V systems).
Market Prospects and Development Trends
Market Size and Drivers
Global CAGR: Projected at 7.2% (2023-2028, Technavio data).
Key Drivers:
- Global phase-out of incandescent/fluorescent lamps.
- Rising smart lighting penetration (>20% YoY growth).
- Emerging applications: Plant factories, UV disinfection, automotive lighting.
Innovation Directions
GaN/SiC Applications
- GaN: Reduces 100W flyback driver size by 50%, improves efficiency by 3-5%.
- SiC Diodes: Achieve 99% PFC-stage efficiency.
Smart Driver Evolution
- Supports Human-Centric Lighting (HCL): Auto-adjusts CCT/brightness.
- IoT Integration: DALI-2/Thread-enabled building-scale control.
Reliability & Lifespan Breakthroughs
- Electrolytic Capacitor Lifespan: 5,000h → 15,000h (at 105°C).
- Predictive Failure: MCU-monitored capacitor ESR changes.
Challenges and Solutions
Cost Pressure: Highly integrated ICs (e.g., PFC+LLC combo chips) reduce costs.
Thermal Management: Thermal potting compounds + ceramic substrates.
Conclusion
Technology Selection: Flyback for low power; LLC/ACF for medium/high power; GaN/SiC accelerating adoption.
Performance Benchmarks: Efficiency >94% (>100W), power density >2W/cm³, lifespan >50,000h.
Future Focus:
- PV Direct Drive: Optimized DC/DC for solar systems.
- oWireless Power: Magnetic resonance for commercial lighting.
- oAI Optimization: Dynamic parameter adjustment based on environmental data.
LED drivers are evolving from "power converters" to "intelligent light control hubs." Technological convergence will reshape the lighting ecosystem.
