Comprehensive Analysis of Fuel Cell Electric Air Compressor Technology
In-Depth Technical Analysis of Fuel Cell Electric Air Compressors (FCEAC)
Operational Principles & System Architecture
The Fuel Cell Electric Air Compressor (FCEAC) is a critical component within Proton Exchange Membrane Fuel Cell (PEMFC) systems. At its core, it functions as a high-speed centrifugal compressor driven by an electric motor. Its operational workflow comprises three distinct phases:
Aerodynamic Compression Phase: A high-speed impeller (typically operating at 100,000-150,000 RPM) pressurizes ambient air to 2.5-3.5 bar. A diffuser subsequently converts kinetic energy into static pressure. Isentropic efficiency must exceed 80% to minimize parasitic power losses.
Motor Drive Phase: A Permanent Magnet Synchronous Motor (PMSM), controlled by an inverter using sensorless Field-Oriented Control (FOC) algorithms, enables precise speed regulation under ultra-high-speed operating conditions.
Thermal Management Integration: High-temperature gas (120-180°C) generated during compression requires cooling via an intercooler to below 80°C to prevent dehydration of the fuel cell membrane electrode assembly (MEA).
- Power Electronics Layer:SiC-based bidirectional DC/AC inverter + DC/DC converter.
- Mechanical Transmission Layer:Direct-drive rotor system supported by air bearings.
- Control Loop:Model Predictive Control (MPC)-based surge suppression algorithms.

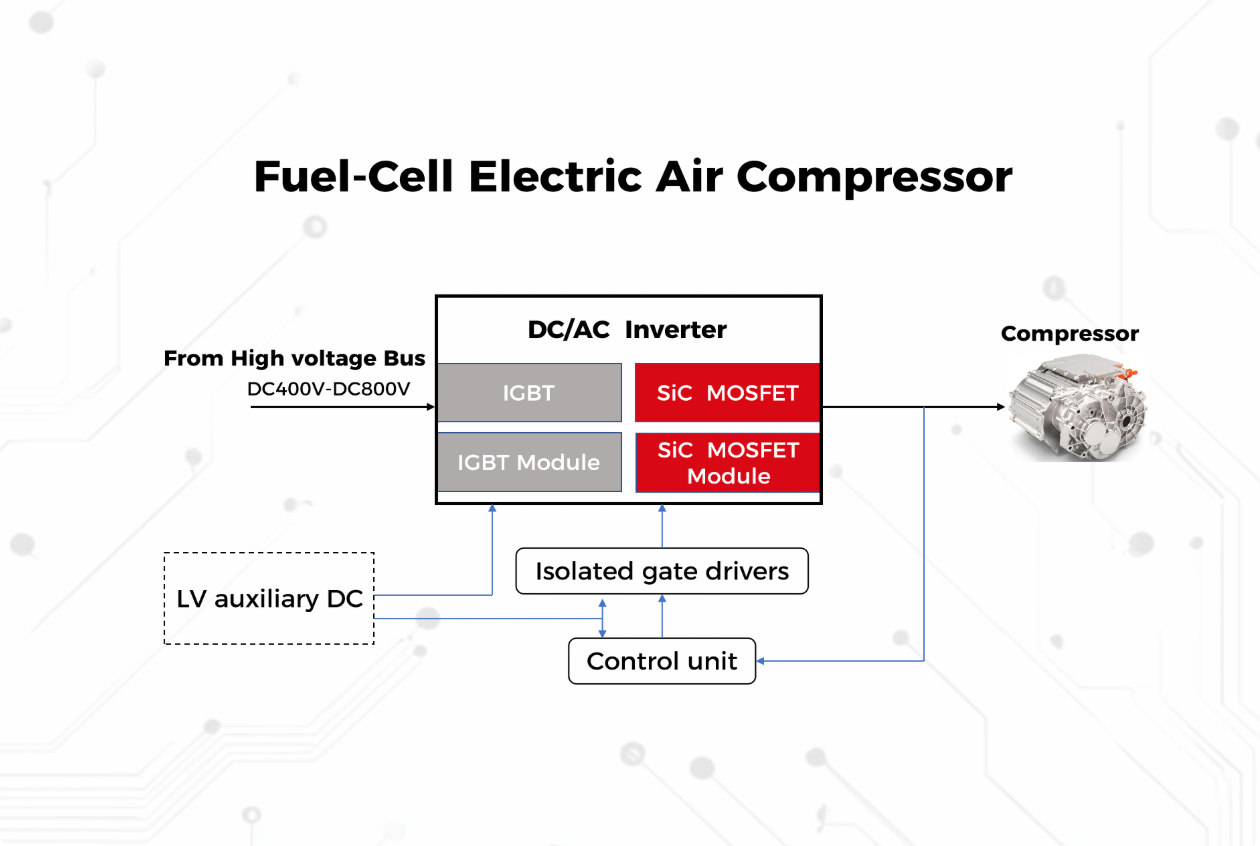

Typical Topological Architecture involves three-stage energy conversion:
Revolutionary Application of Silicon Carbide (SiC) Devices
Third-generation semiconductor Silicon Carbide (SiC) delivers three primary advantages in FCEAC systems:
Disruptive Performance of SiC MOSFETs:
- 70% Reduction in Switching Losses:SiC MOSFETs (1200V) enable switching frequencies exceeding 100 kHz, reducing inverter volume by 40%.
- High-Temperature Stability:Junction temperature tolerance up to 200°C allows elimination of liquid cooling modules.
- Conduction Resistance Characteristics:The temperature coefficient of RDS(on) is only one-third that of silicon IGBTs, ensuring efficiency across the entire operating range.
System-Level Optimization with SiC Diodes:
- Near-Zero Reverse Recovery Charge (Qrr):Eliminates voltage spikes caused by diode reverse conduction.
- Full SiC Power Modules:Integration with MOSFETs improves system efficiency by 3-5 percentage points.
- Enables Advanced Topologies:Facilitates use of 3-Level Neutral-Point Clamped (NPC) topologies, achieving Total Harmonic Distortion (THD) below 2%.
Enhanced Reliability Design:
- Gate Oxide Integrity:NOFFA (Nitridation Oxide Field Effect) gate oxidation process improves Time-Dependent Dielectric Breakdown (TDDB) lifetime by 10x.
- Reduced EMI: Smaller chip size lowers parasitic capacitance, decreasing EMI noise by 15 dB.
Market Outlook & Technology Trends
The global market is exhibiting exponential growth, with key projections indicating:
- Market Expansion:Market size projected to exceed $2.8 billion USD by 2025, with a CAGR of 34.7% (2023-2030 period).
- Technology Evolution Directions:
- Policy Drivers:
Ultra-High-Speed Motor Design: Magnetic levitation bearings + 3D-printed titanium alloy impellers.
Intelligent Diagnostics: Digital twin-based predictive maintenance and remaining useful life (RUL) estimation.
Hybrid Topology Architectures: Interleaved parallel Boost + Power Factor Correction (PFC) front-end.
China's "14th Five-Year Plan" for Hydrogen Energy mandates compressor specific power ≥ 5 kW/kg.
EU Fuel Cell Roadmap 2030 sets noise standards < 65 dB(A).
US DOE-funded "Million-Rotors Initiative" targets system cost < $35/kW.
Industrialization Challenges & Breakthrough Pathways
1. Current critical technical bottlenecks include:
2. Reducing SiC module thermal resistance to below 0.5 K/W.
3. Ensuring bearing lifespan under millions of start-stop cycles.
Controlling surge margin during -40°C cold starts.
Promising breakthrough technologies anticipated within the next 5 years encompass:
- High-temperature protective coatings (≥230°C continuous operation) for NdFeB magnets.
- Hybrid GaN-on-SiC power modules.
- Bio-mimetic volute design (reducing pressure loss by 12%).
This whitepaper systematically outlines the technological framework of fuel cell air compressors, highlighting how Wide Bandgap (WBG) semiconductor devices enhance power density and reliability to advance the hydrogen industry. Continuous progress in materials science and control algorithms promises further profound transformations in this field.
