Overview
With the widespread adoption of fast-charging technologies and increasing power demands of terminal devices, 3C digital adapters (>100W) have become critical products in the power management domain. Utilizing digital control for high-efficiency power conversion and supporting protocols like PD3.1 and QC5, they are extensively deployed in notebooks, mobile devices, and IoT applications. This report provides a systematic analysis of their technical principles and future trajectories.
Working Principle
Core Power Conversion Mechanism

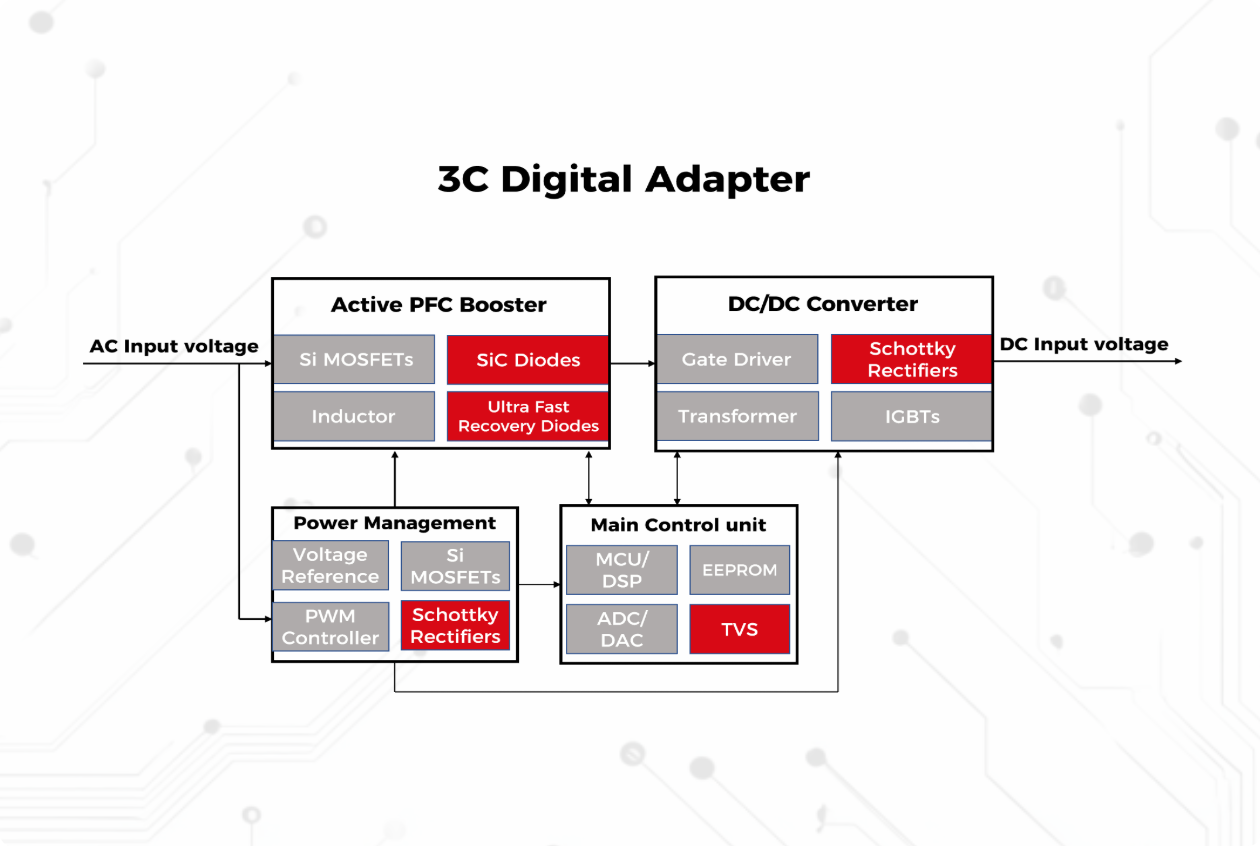

High-power digital adapters employ a two-stage AC-DC and DC-DC conversion process:
- AC-DC Stage: An Active Power Factor Correction (PFC) circuit converts AC input to high-voltage DC, achieving >95% efficiency. Digital control ICs (e.g., TI UCC28064) dynamically adjust switching frequencies to minimize harmonic distortion.
- DC-DC Stage: Secondary voltage reduction is accomplished via LLC resonant or flyback topologies. Leveraging GaN/SiC components enables MHz-range high-frequency switching, significantly reducing thermal losses. Digital PID algorithms regulate duty cycles in real-time to maintain stable output voltages across a wide range (5-48V).
Protocol Interaction & Intelligent Management
- Built-in MCUs (e.g., ST STM32G4) decode USB PD protocols, negotiating voltage/current parameters through CC lines. Multi-device dynamic power allocation (e.g., 140W across three ports) is supported.
- Digital comparators implement over-voltage/over-current protection with response times <10μs, enhancing reliability by 3× compared to analog solutions.
Topology Architecture
Typical Topology Structures
- Front-End PFC: Interleaved Boost PFC topology reduces input current ripple, maintaining THD <5%.
- Rear-End DC-DC:
LLC Resonant Converter: Preferred for 100-240W applications. Zero Voltage Switching (ZVS) minimizes switching losses, achieving >94% efficiency.
Active Clamp Flyback (ACF): Adopted for compact designs. Gallium Nitride (GaN) components enable ultra-high power density (65W/inch³).
Digital Control Architecture
- Hybrid DSP+FPGA Control: DSPs execute algorithms (e.g., FFT harmonic analysis), while FPGAs generate nanosecond-precision PWM signals.
- Digital Isolation: Capacitive or magnetic coupling isolation (e.g., ADI iCoupler) ensures safe signal transmission across high/low-voltage domains.
Market Prospects & Development Trends
Market Size & Key Drivers
- The global high-power adapter market is projected to reach $12 billion by 2025, with an 18.7% CAGR (Source: Omdia).
- Primary Growth Catalysts:
New EU CE regulations mandating <75mw standby power consumption.
Surging demand from gaming laptops and AR devices, accelerating 200W+ product R&D.
Technology Trends
- Material Innovation:Mass production of GaN-on-SiC components will reduce adapter volume by 40%.
- AI-Optimized Power Management:Machine learning models (e.g., NXP’s ML framework) predict load variations to dynamically optimize efficiency curves.
- Wireless Integration:Magnetic resonance wireless charging (e.g., AirFuel standard) may be incorporated into future adapters.
Competitive Landscape
- Leaders (Anker, Belkin) focus on "miniaturization + multi-protocol compatibility," while tier-2 brands target emerging markets (Southeast Asia, Latin America) via cost competitiveness.
The advantages of SMC
SMC, as a globally leading power semiconductor device manufacturer with nearly 30 years of history, can provide customers with the most advanced, efficient, and cost-effective third-generation silicon carbide MOSFETs and silicon carbide JBS diodes. In addition, SMC has unique experience in silicon-based power diode devices, and its best-selling high-power ultra-fast recovery diodes, high current Schottky diodes, and other products are highly praised by customers worldwide. SMC's power semiconductor devices can provide higher efficiency, better reliability, good delivery time, and competitive prices for your products. SMC's professional service team around the world allows you to experience the ultimate customer service experience and safeguard your product design.
